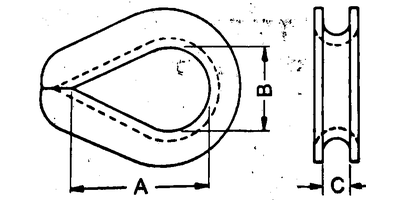

| Rope Dia (in) | Weight Per 100 (lbs) | Dimensions (in) | ||
| A | B | C | ||
| 1/4 | 6.50 | 1.63 | 0.88 | 0.28 |
| 5/16 | 11.80 | 1.88 | 1.06 | 0.34 |
| 3/8 | 21.60 | 2.13 | 1.13 | 0.41 |
| 7/16 | 34.70 | 2.38 | 1.25 | 0.47 |
| 1/2 | 51.00 | 2.75 | 1.50 | 0.53 |
| 9/16 | 51.00 | 2.75 | 1.50 | 0.59 |
| 5/8 | 75.70 | 3.25 | 1.75 | 0.66 |
| 3/4 | 158.10 | 3.75 | 2.00 | 0.78 |
| 7/8 | 177.80 | 4.25 | 2.25 | 0.94 |
| 1 | 313.90 | 4.50 | 2.50 | 1.06 |
| 1 1/8-1 1/4 | 400.00 | 5.13 | 2.88 | 1.31 |
| 1 1/4-1 3/8 | 811.00 | 6.25 | 3.50 | 1.44 |
| 1 3/8-1 1/2 | 1,294.80 | 6.50 | 3.50 | 1.56 |
| 1 5/8 | 1,700.00 | 8.00 | 4.00 | 1.72 |
| 1 3/4 | 1,775.00 | 9.00 | 4.50 | 1.84 |
| 1 7/8-2 | 2,775.00 | 12.00 | 6.00 | 2.09 |
| 2 1/4 | 3,950.00 | 14.00 | 7.00 | 2.38 |
| 2 3/8 | 4,884.00 | 14.88 | 7.00 | 2.52 |
| 2 1/2 | 6,270.00 | 15.70 | 7.40 | 2.62 |
| 2 3/4 | 6,626.00 | 16.46 | 7.40 | 2.90 |
| 2 7/8 | 7,920.00 | 17.45 | 7.72 | 2.99 |
| 3 | 8,470.00 | 18.31 | 7.72 | 3.15 |
| 3 1/2 | 9,680.00 | 19.88 | 9.45 | 3.74 |
